SOAP

SOAP



SOAP is a protocol used for exchanging structured information between applications over the Internet. It is based on XML and is used to define messages, message envelopes, and how to process messages. SOAP uses XML to format the message, which is then sent over a network using HTTP, SMTP, or other underlying transport protocols.



There are some important concepts and terms:



SOAP message: A SOAP message is an XML-based message that is sent between applications using SOAP. It typically consists of a SOAP envelope, which contains a SOAP header and a SOAP body.



SOAP envelope: A SOAP envelope is the outermost XML element of a SOAP message. It contains a SOAP header and a SOAP body, which can contain the actual message content.



SOAP header: A SOAP header is an optional XML element within a SOAP envelope. It contains metadata about the SOAP message, such as authentication credentials, message routing information, and application-specific data.



SOAP body: A SOAP body is an XML element within a SOAP envelope that contains the actual message content.



SOAP endpoint: A SOAP endpoint is the URL of the service that is providing the SOAP interface.

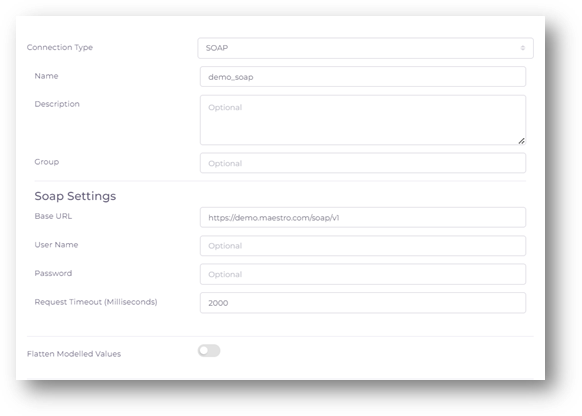

SOAP

BaseUrl

Base URL

String

UserName (Optional)

Username to connect to server

String

Password (Optional)

Password to connect to server

String

RequestTimeoutMs

Request timeout in milliseconds

Int

FlattenModeledValues

Whether to flatten modeled values

Bool

Inputs

Connection inputs

List

Outputs

Connection outputs

List



metin içeren bir resim

Açıklama otomatik olarak oluşturuldu

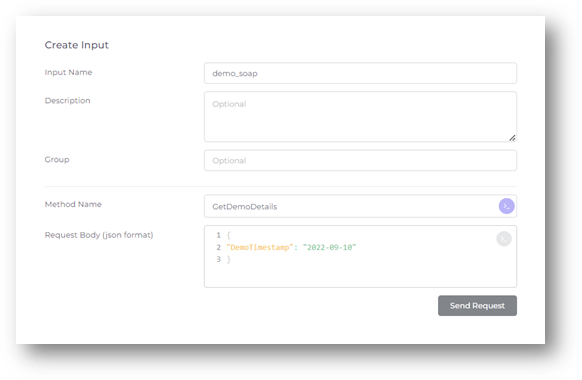

Input

MethodName (Optional)

Method name

String

HttpMethod

Http Method (e.g. GET)

String

RequestBody (Optional)

Request Body

String



metin içeren bir resim

Açıklama otomatik olarak oluşturuldu

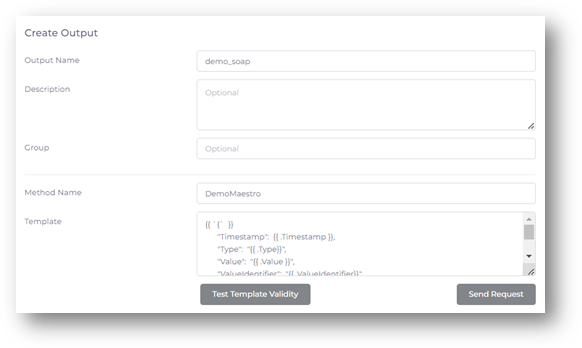

Output

MethodName (Optional)

Method name

String

Template (Optional)

Template

String
